Bioreactor

This is an example of a bioreactor designed by IAI for the biopharmaceutical industry. It is a 200 litre capacity aseptic bioreactor with ASME U-stamp which operates under pressure between 40 psig and 130 C and under vacuum. It is equipped with a double-walled membrane and a low-shear agitation system. The stirring shaft seals are kept under pressure and the unit includes its own CIP system.

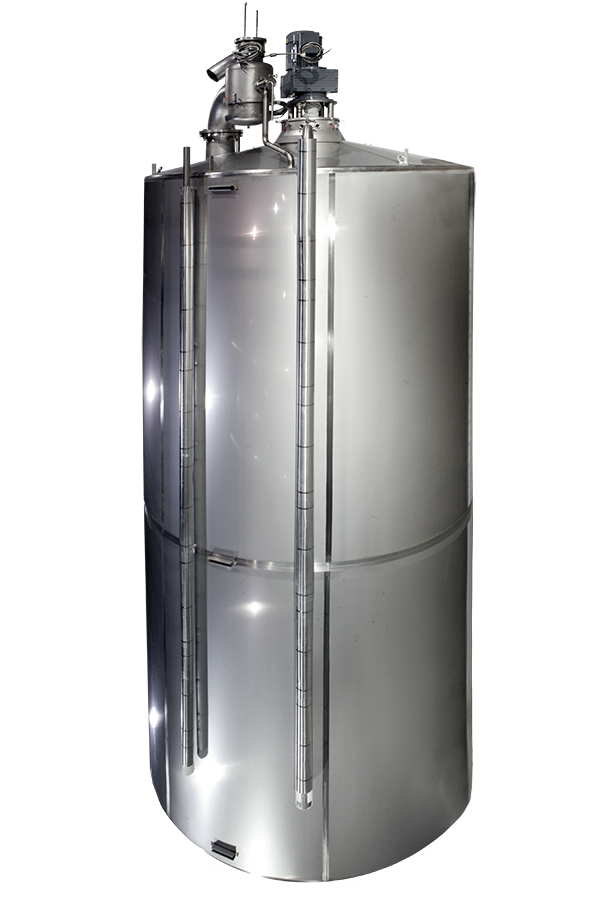

Ultra-Clean 40 000 L Maturation Tank

40,000 L maturation tank for processing dairy. This tank is used for increasing the viscosity of liquid yogourt by introducing a bacteriological substance into it.

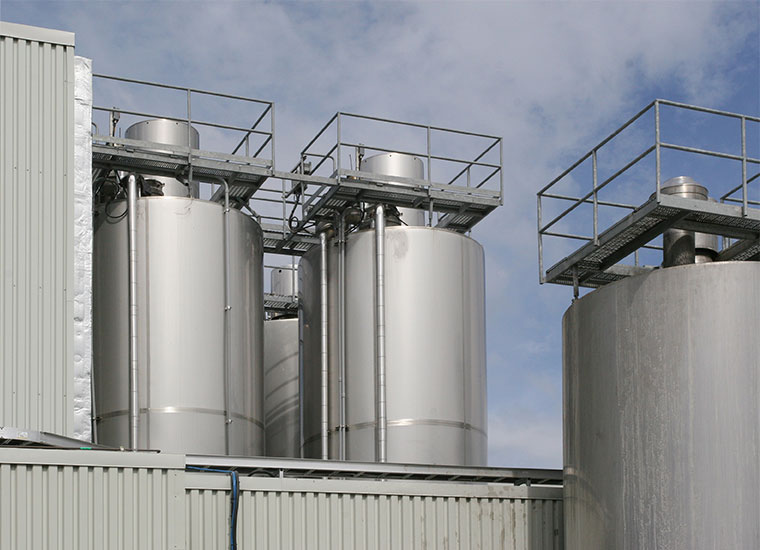

Ultra-Clean 40 000 L Maturation Tank

40,000 L maturation tank for processing dairy. This tank is used for increasing the viscosity of liquid yogourt by introducing a bacteriological substance into it.

Certified High Pressure Charcoal Filter

This certified pressure tank is used for water treatment.

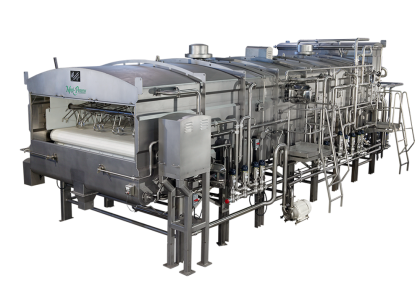

Maxi Process : 9 900 lbs / hour Cheddaring Cheese Conveyor

This cheddaring cheese conveyor in itself alone integrates all the required separation elements of solid/liquid of cheese, including the skimming, draining, mixing and curing. It is designed for a production that can go up to 9.900 pounds of cheese per hour.

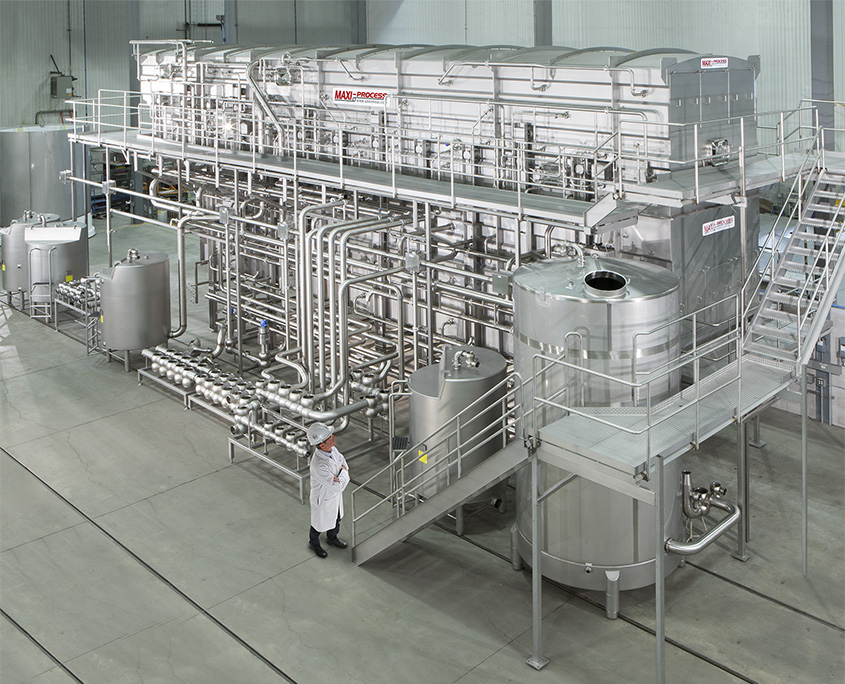

2nd Generation Maxi-Process - 16,000 pounds per hour

Le système de drainage Maxi-Process est une machine entièrement automatisée et équipée de convoyeurs spéciaux. Celui-ci est capable de traiter, égoutter, saler et couper jusqu'à 16,000 livres de fromage de qualité par heure. Le Maxi-Process est utilisé dans le traitement industriel du fromage. Les différents types d'équipements intégrés à cette machine lui donnent la capacité de traiter un volume élevé de fromage à faible coût tout en maintenant un niveau de qualité stable et constant. La première étape consiste à séparer le lactosérum du fromage en grain provenant des cuves du client à l'aide d'un filtre très fin. Plus précisément, cela est accompli au moyen d'un séparateur cunéiforme à fils métalliques dont l'ouverture est de 150 microns. Par la suite, afin de se débarrasser des petites particules de fromage, le lactosérum est redirigé vers un second séparateur cunéiforme à fils métalliques avec une ouverture de 100 microns. Ainsi, le lactosérum sortant du Maxi-Process peut ensuite être traité aisément par le clarificateur. Subséquemment, le fromage en grain est transféré sur quatre convoyeurs spéciaux afin d'être égoutter. Le Maxi-Process vous permet de traiter le fromage en bloc ou en grain grâce à un agitateur multi-étape. Les dispositifs de pulvérisation vous permettent de contrôler la température et le pH du fromage. De plus, le système Maxi-Process comprend un pulvérisateur de sel ainsi qu'un broyeur destiné spécifiquement à la coupe de fromage en grains. Pourvu de tous les appareils nécessaires au nettoyage CIP complet, le système Maxi-Process est conçu pour durer. D'ailleurs, Maxi-Process est fabriqué uniquement avec des matériaux de qualité tout en vous étant offert à un prix compétitif.

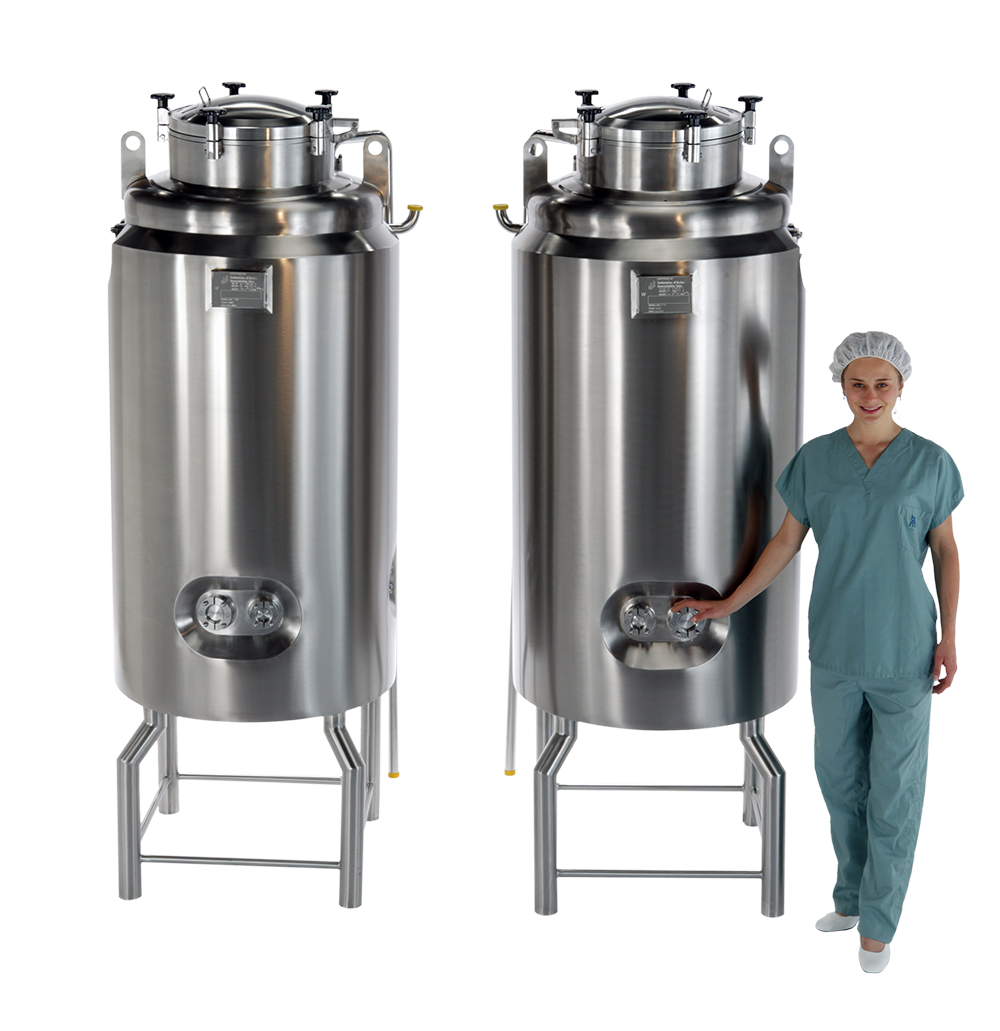

3 600 litre Organic Tanks

316 L stainless steel tank equipped with insulated double wall, 20 Ra interior finish, 32 Ra exterior finish, ground welds, inlet pipes, and washing balls welded to the sockets. This unit is certified, robiflavin-tested, and equipped with a magnetic stirring system.

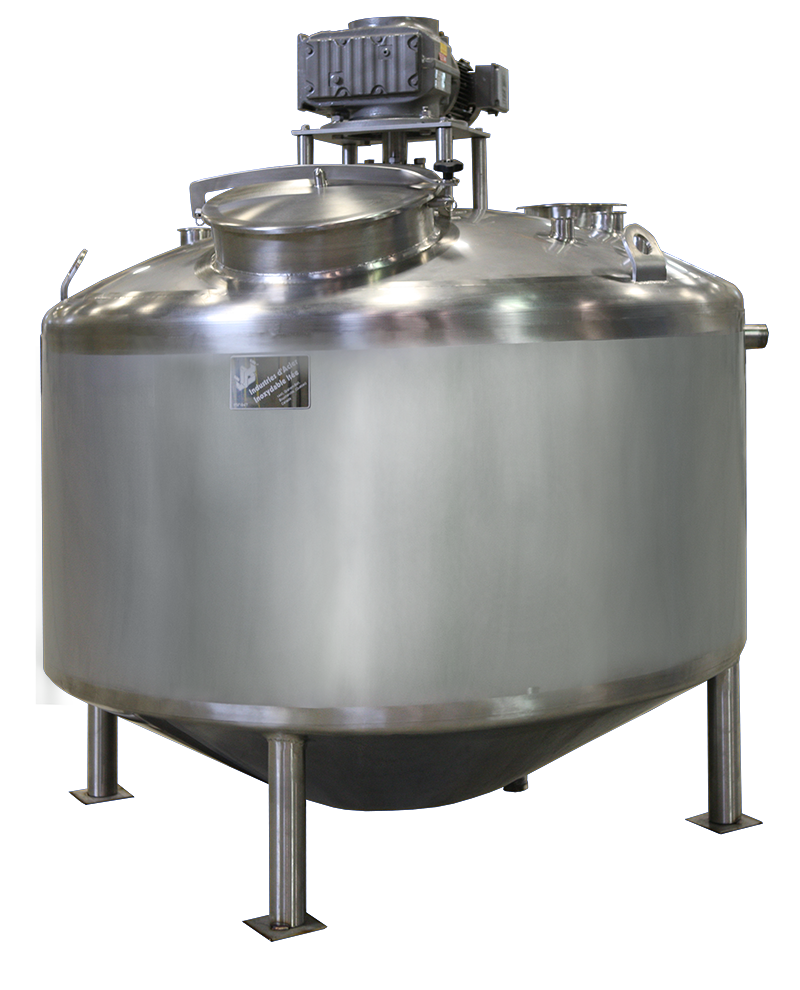

High Capacity Processor with Heat Exchanger

This 400 USG processor, manufactured for the food industry, includes a dimpled heat exchanger and ferrule. It is equipped with a vertical agitation system with a surface-scraping mechanism.

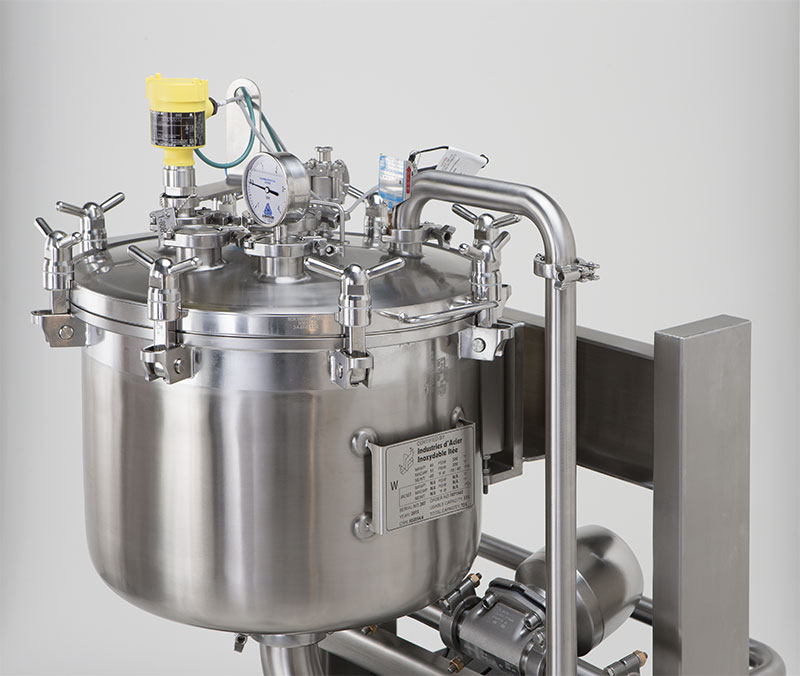

High Pressure Tank

Portable tank with high pressure certification.

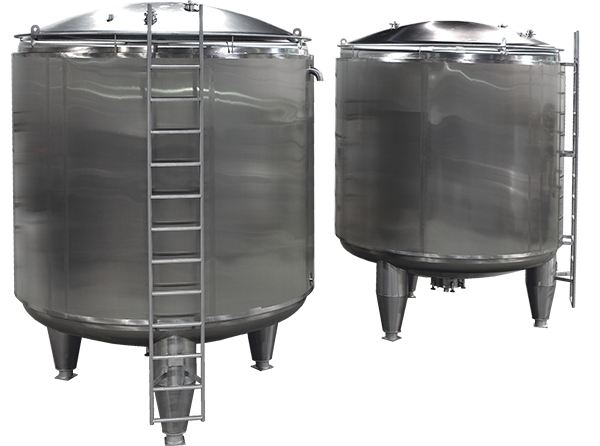

Aseptic Tank

This tank was made for a customer in the food industry. It is a full vacuum unit designed for 45 psi positive pressure operation. All internal surfaces ahave a 25 Ra finish. The sterilization process is accomplished with steam. The unit is equipped with a high-speed washing turbine for NEP and a magnetic stirring system.

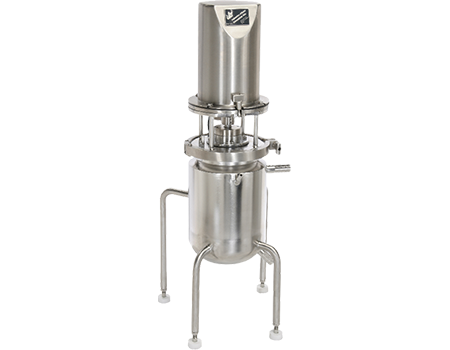

Small Laboratory Reactor

4.5 L laboratory unit of used in the pharmaceutical industry. It is equipped with a vertical stirring system, including a 0-100 rpm speed controller, and a low-shear propeller.

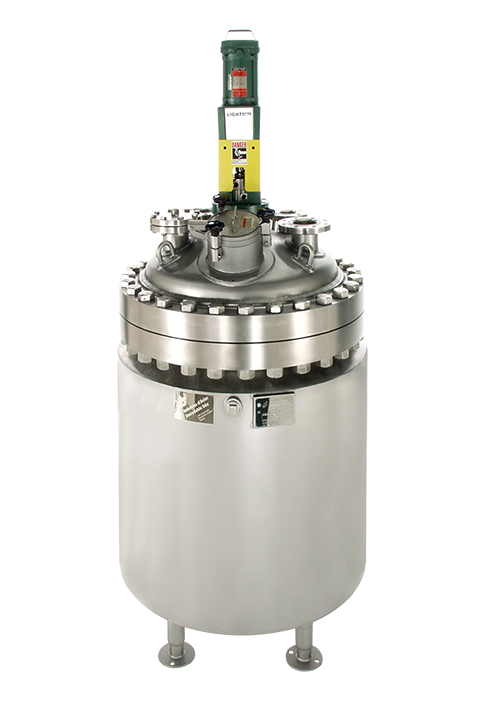

Small Pharmaceutical Reactor

This heat treatment bioreactor is used in processing chemicals for the pharmaceutical industry. It has a 100 USG capacity and a removable head that can operate under an internal pressure of 100 psi. This reactor is manufactured in Hastelloy C22 stainless steel and ASME, U-Stamp certified.
